Extreme Performance Stability Three-Phase Stationary Meter Test Bench to Calibrate Smart Meter

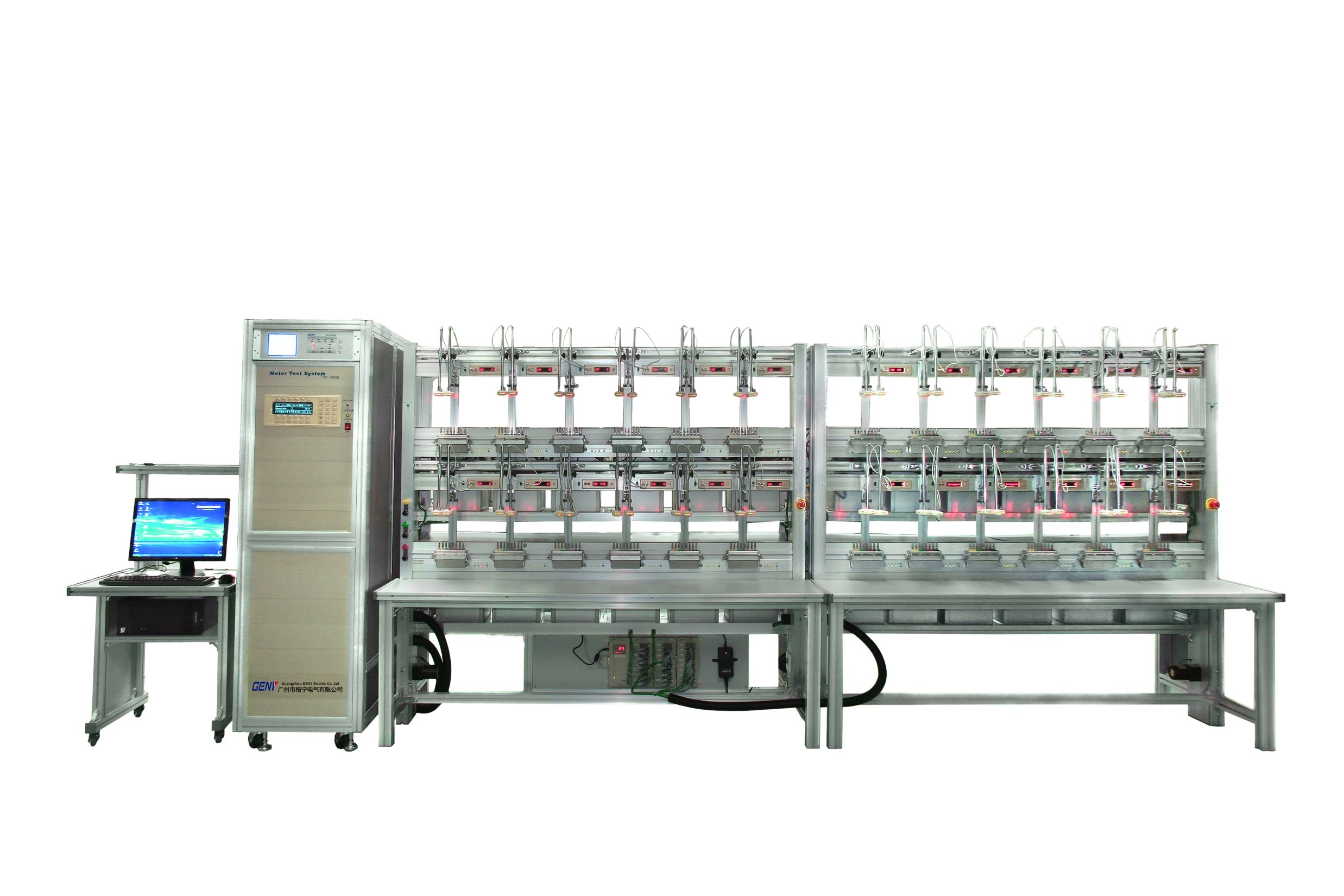

Stationary Three Phase Meter Test Bench

The YC1893D meter test system is a full-automatic test system for testing and calibration of both single-phase and three-phase electric energy meters, which composes of:

• Three-phase Power source

• Three-phase Reference standard meter

• Meter suspension test racks for testing of both 1-phase/3-phase meters

• Smart meter function test system (fixed voltages, optical probe, relay control test and ripple control box as option)

• Other necessary parts

• PC and software controlling the whole system

The YC1893D meter test system is fully compliant with the IEC 60736 standard and is suitable for testing meters according to the following standards:

• IEC 62052-11 and IEC 62053-11, -21, -22, -23, -24

• IEC 62056

• EN 50470-1, EN 50470-2, EN-50470-3

• IEC 61010

Features

• The meter test system can measure mechanical meters, electronic mechanical meters and electronic meter by the way of automatic, semi-automatic or manual operation.

• Aluminium alloy material, light and strong and corrosion resistant.

• Automatic positioning rotor mark of disc of mechanical meter, with more efficiency.

• The swing together of the scanning heads simplifies the control.

• Fully automatic completion of the following tests:

  • Accuracy test in all four quadrants (active, reactive and apparent energy)

  • Repeatability of error test

  • Creep test (No-load test)

  • Starting current test

  • Dial test (Register test)

  • Meter constant test

  • Influence quantity test (voltage, voltage unbalance, frequency, harmonic distortion, reverse phase sequence.)

  • Calibration of reference standard meter having lower accuracy than the employed reference standard

  • Pre-warming

  • Dips and Interruptions

  • Testing single-phase meters under tampered conditions

  • Sub Harmonics as per IEC standards

  • Odd Harmonics as per IEC standards




• Measuring different constants of meters synchronously.

• With the protection function of overload, short voltage circuit and open current circuit.

Technical specification

The test bench is multiple positions up to 24 meters, 0.02% of accuracy class Three-phase Meter Test System with ICTs, with multiple serial port communication system for parallel communication for testing of smart meters.

Power Supply

Power Source

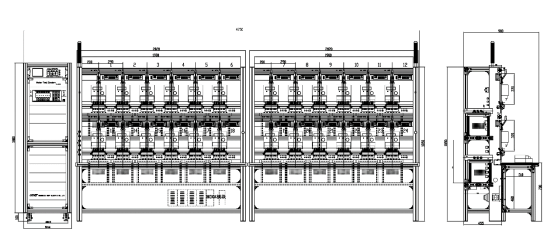

Structural diagram of stationary meter test bench
