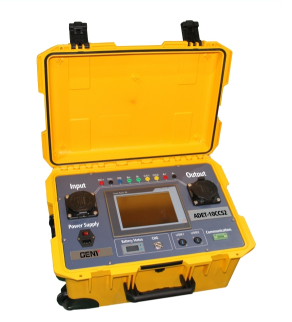

ADET-10CCS2 EVCS Interoperability Test Set

微信

新浪微博

QQ空间

豆瓣网

百度贴吧

Certification ISO,CE

Payment Terms LIC, DIP, T/T, DIA

Delivery Time 4 -8weeks

Place of Origin CHINA

Brand GENY

Model ADET-10CCS2

+8613609025617

Reservation Now

产品详情

Features & Functions

· On-site test of charging interoperability of AC/DC EVCS (Electric Vehicle Charging Stations).

· Inspection and testing of charging piles and electric vehicles through the exchange of information and process control, to realize the charging interoperability.

· With AC Detection Function and DC detection function.

· Equipment with emergency stop button, short circuit, open circuit, overload protection.

· It complies with the following standards: IEC 61851-1:2017 IEC 61851-22:2001,IEC 61851-23:2019,IEC 61851-24:2023,IEC 62196-1,3:2022

Product Parameters

General	AC	DC
Voltage Measurement Range	AC 0-260V	DC 0V-1000V
Current Measurement Range	0-32A	0-200A
Current Resolution	0.01A	0.01A
Voltage Resolution	0.01V	0.01V
Current Measurement Accuracy	±0.2%FS	±0.2%FS
Voltage Measurement Accuracy	±0.2%FS	±0.2%FS
Energy Measurement Accuracy	±0.2%FS	200A
External Load Interface	32A	DC 0V-1000V
Protection Level	CATII 300V	CATII 1000V
AC
CP Voltage Measurement Range	0-12VDC measurement accuracy<1%
CP Duty Cycle Measurement Range	0%-99% measurement accuracy<1%
DC
Acquisition Channel	8-channel insulation acquisition
Battery voltage simulation rangeAnalog range	Analog range 10-1000V Accuracy 0.5%FS

Our Advantages

· Leadership in Innovation: With over 20 years of expertise, we are at the forefront of the electric energy meter measurement industry. We are known for our pioneering spirit, creating groundbreaking technologies, and establishing new industry standards.

· Exceptional R&D Capabilities: Our esteemed R&D team is the driving force behind our innovations. They are committed to pushing the boundaries of electric energy meter testing solutions to satisfy the specific needs of our wide-ranging customer base.

· Expert and Professional Team: Every member of our team undergoes rigorous training to ensure they represent the highest standards of professional expertise and technical skill.

· Commitment to Quality: Our dedication to quality is evident in our ISO9001 management system, which has been certified since 2002. We have fully embraced Total Quality Management (TQM) principles, making quality assurance a shared responsibility among all our staff.

· Integrated Quality Management: Yangcheng operates under a single ISO9001 framework that encompasses R&D, production, marketing, sales, and service. This ensures a consistent and relentless pursuit of superior product quality.

· Strategic Marketing and Pricing: We utilize an advanced marketing network to offer competitive prices, providing our customers with value-added investments.

· Customer-Focused Service: Our service team is not just well-trained; they are prepared to offer a comprehensive range of services including maintenance, training, customized solution design, and software updates. We aim to ensure that your initial interaction with us becomes the benchmark for all future engagements
