YCCI-9901 Phase&Feeder ldentifier

Specifications

Features and Functions

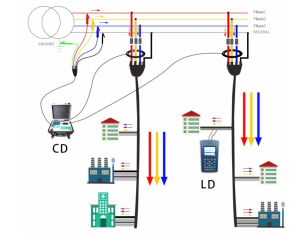

· To analyze the basic information of end users, analyze and identify the supplied power of a network point come from which phase, feeder, and transformer zone.

· Complies with the relevant IEC standard.

· Identify 3 phases and a maximum of 12 feeders of a transformer output.

· Support feeder group test and phase group test.

· Available for cascading system test.

· Effective maximum distance > 1000m.

· CD can work as a multi-meter and display power parameters of the transformer secondary side.

· Voltage waveform and 3 to 51 times odd harmonics display.

· LD power via test lead and rechargeable battery (optional).

· Auto-off function is available.

· Large color screen to display enough information.

· Rapid identification and automatic data storage.

Our Advantages

1. We have been engaged in the Electric Energy Meter measurement field for over twenty years as an all-time technological leader and creator of new technology in the Electric Energy Meter calibrator field. We have an excellent R&D team that has devoted to the technical development of Electric Energy Meter test instruments for a long time, we can satisfy different requirements of all kinds of customers.

2. All of our staff have received specialized training and acquired good professional quality and skills. The company adopts ISO9001 management and we have passed the authentication of ISO9001-2000 in 2002 and all staff has taken TQM training. Yangcheng has now realized ISO9001 control of R&D production, marketing & sales, and service completely to guarantee product quality.

3. We have a consummate marketing network and we offer a competitive price.

4. Our well-trained service team is able to provide maintenance, training, scheme design, and software update services to each customer for the first time.
