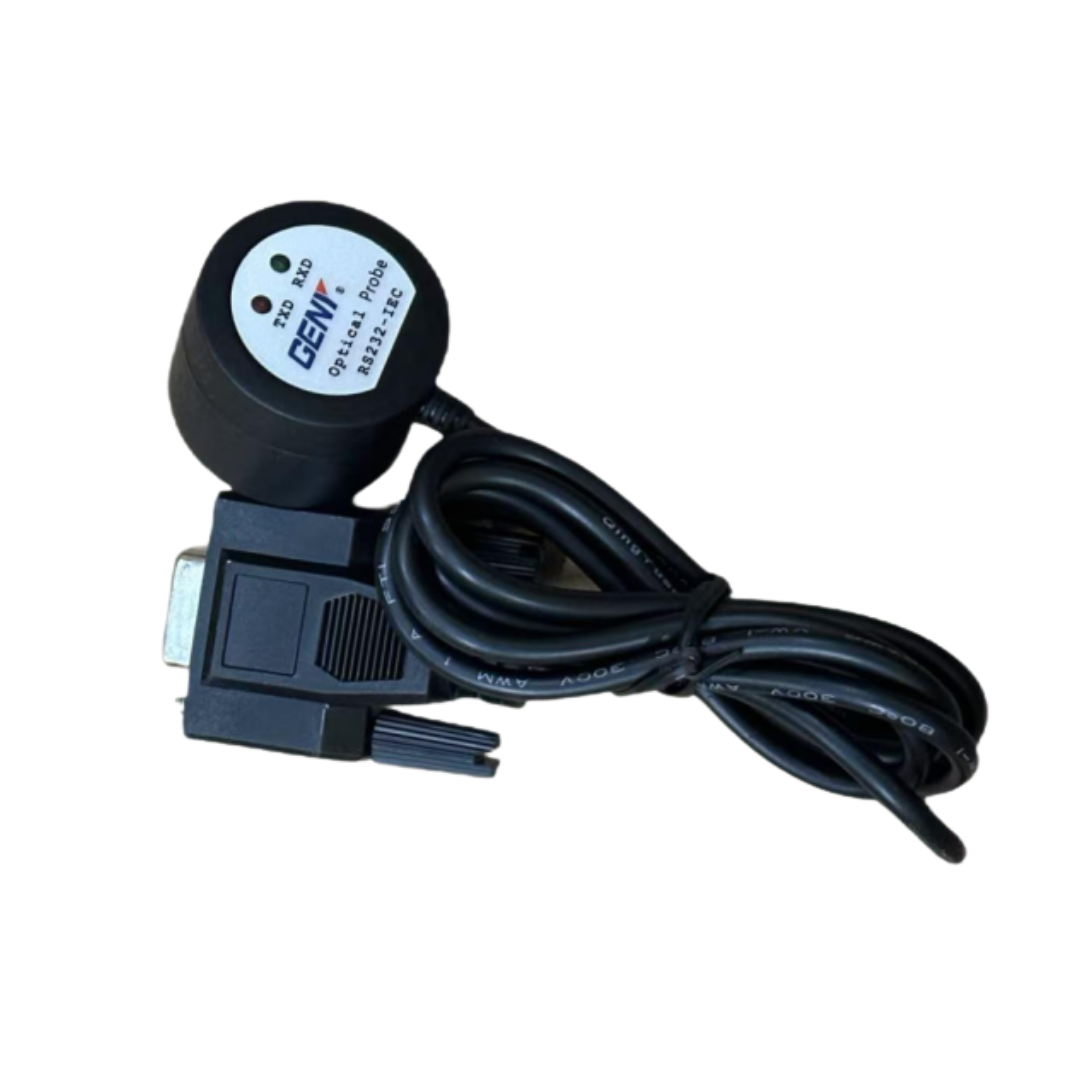

RS232 connector Optical Probe

Items

Features

Communication Interface

RS232

Supported Standard

IEC 62056-21 / ANSI / ANSI-Type2

Maximum B.R.

115200

Connector

RS232(DB9)

Sensor Light Wave Length

900 nm.

Cable length

1.5M in normal and 1M/2M/3M for option

Fastening

Strong magnetic adhesion (in accordance with IEC

62056-21)

Magnet Holding Power

N45 / N52 (Optional)

Note: N45 grade must achieve ≥ 2800 Gauss at 6 mm thickness, with a minimum pull force of 6.3 N.

Mechanical

Impact PBT+GF housing

Environment

Application temperature: -40℃~70℃ in normal

Diameter & Height

Optical port 32mm Diameter / H23mm

Weight

80gr

Enclosure Material

PBT+GF

Protection Class

IP 54
