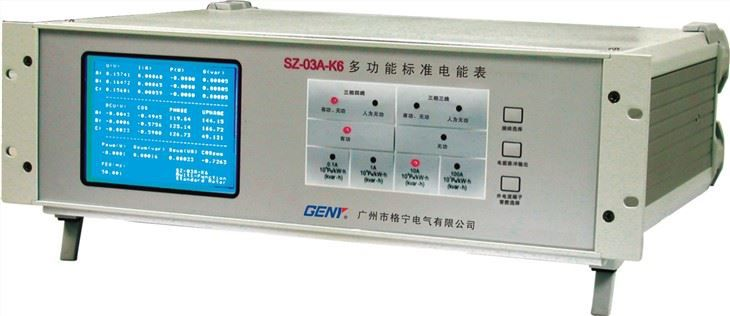

SZ-03A-K6 Three Phase Standard Meter
| ● | 0.05% accuracy |
| ● | Testing mode:active power, reactive power, cross connection reactive power |
| ● | Testing type: 3 phase 4 wire, 3 phase 3 wire |
| ● | Measuring voltage, current,phase,frequency,power etc of each phase |
| ● | Measuring phase angle of phase to phase,sum of active power,sum of reactive power etc |
| ● | High stability |
| ● | Wide testing range |
| ● | Large size LCD display screen |
| ● | With communication port to PC |
| ● | The reference standard meter is accredited to conforms to EU health and safety standards with CE certificates |
Application Conditions and Requirements | |||||
Environment | Power Requirement | Safety | |||
Operation Temperature | Humidity | Altitude | Voltage Supply | IP Class | Conformity |
－10°℃--+40℃ | 45%--75% | ＜2500m | 220V±10%,50/60Hz±2Hz | IP30 | CE conform |
Type | SZ-03A-K6 |
Test voltage | |
Range | 30V-480V |
Error | ±0.05%(30V-480V) |
Display range | 5.000000V-480.000V |
Test current | |
Range | 10mA-120A |
Error | ±0.05%(50mA-120A) ±0.1%(10mA-50mA) |
Display range | 1.000000A-120.0000A |
Power measure error | |
Active power | ±0.05%(50mA-120A) |
Reactive power | ±0.1%(50mA-120A) |
Apparent power | ±0.1%(50mA-120A) |
Phase angle | |
Range | 0°-360° |
Error | ±0.05° |
Display range | 0.000001°--359.9999° |
Frequency | |
Range | 45Hz-65Hz |
Display range | 45.000-65.000 |
Pulse output | |
High frequency output(CH) | 1x109(1A-10A) |
| 1x108(1A-10A) | |
| 1x107(10A-120A) | |
Low frequency output(CL) | 2x10-5xCH |
Pulse ratio | 1:1 |
Output level | 5V |
Pulse input | |
Input level | -- |
Input frequency | -- |
Dimensions(WxHxD)(mm) | 432x131x308 |
Weight(kg) | 15 |
