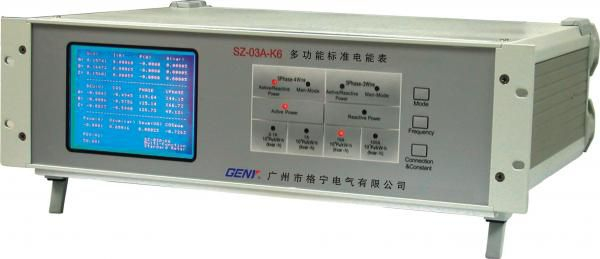

Three Phase Reference Standard Meter
| Brand Name | GENY |
|---|---|
| Model Number | SZ03A-K6 |
| Certification | ISO 9001 |
| Place of Origin | China |
| Minimum Order Quantity | 1 pcs |
| Price | Negotiation |
| Supply Ability | 30 PCS per month |
| Delivery Time | 30 days after order confirmed |
| Packaging Details | Aluminum case with carton |
| Display Type | LCD |
| CPU | High-speed DSP |
| Test of Voltage | 5V - 480V |
| Test of Current | 10mA - 120A |
| Phase | three phase |
| Accuracy class | 0.05 |
Specifications:
| SZ03A-K6 | |
Test Voltage | |
Range | 30V – 480V |
Error | ±0.05% (30V – 480V) ±0.1% (5V – 50V) |
Display range | 5.000000V – 480.0000V |
Test Current | |
Range | 10mA – 120A |
Error | ±0.05% (0.2A – 120A) ±0.1% (10mA – 0.2A) |
Display range | 1.000000mA-120.0000A |
Power measure error | |
Active power | ±0.05% (0.2A – 120A) |
Reactive power | ±0.1% (0.2A – 120A) |
Apparent power | ±0.1% (0.2A – 120A) |
Energy measure error | |
Active energy | -- |
Reactive energy | -- |
Apparent energy | -- |
Phase angle | |
Range | 0º – 360º |
Error | ±0.05º |
Display range | 0.000001º -- 359.9999º |
Frequency | |
Range | 45Hz – 65Hz |
Display range | 45.0000 – 65.0000 |
Pulse output | |
High frequency output(CH) | 1×109 (0.2A – 1A) 1×108 (1A – 10A) 1×107 (10A – 120A) |
Low frequency output(CL) | 2×10-5×CH |
Pulse ratio | 1:1 |
Output level | 5V |
Pulse input | |
Input level | -- |
Input frequency | -- |
Other | |
Voltage Supply | 220V ± 10%, 50/60Hz ± 2Hz |
Ambient temperature | 10°C -- 30°C |
Influence of external fields | ≤ 0.05 % / mT |
Relative humidity | 45% -- 75% |
Dimensions (W×H×D) (mm) | 432×131×308 |
Weight (kg) | 15 |
Description:
◆ This is wide current range Three Phase Reference Standard Meter, suit for Stationary Three Phase Energy Meter Test System.
◆ High accuracy up to 0.05%
◆ Testing type: 3 phase 4 wire, 3 phase 3 wire
◆ Testing mode: active power, reactive power, cross connection reactive power
◆ Measuring voltage, current, phase, frequency, power etc of each phase
◆ Measuring phase angle of phase to phase, sum of active power, sum of reactive power etc
◆ Test data can be managed by computer via Rs232 interface
Applications:
◆ Nation-level utility companies
◆ Governmental bureaus of metrology
◆ Big energy meter manufacturers
◆ Primary Competitive Advantages:
◆ High quality product
◆ High stability
◆ Friendly interface
◆ Convenient operation
Established in 1987, GENY is well-known as one of the leading and professional manufacturers and suppliers of large lcd display screen, test of voltage 5v - 480v and test of current 10ma - 120a high accuracy grade 0.05 three phase reference standard meter with power accumulation function in China. Please rest assured to buy the quality equipment made in China from us and experience our good after-sale service.
