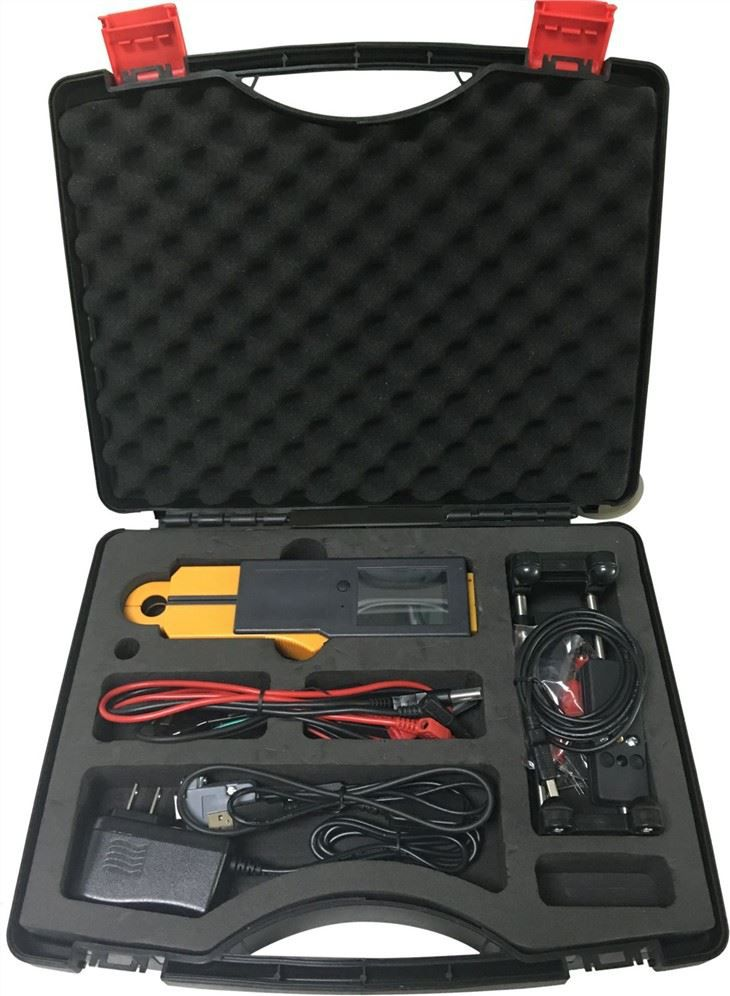

Current clamp and meter combined together, colorful and touch-screen display;

One Li-battery can continuously working 12 hours;

Wide voltage,current measurement range, voltage range:15-300V,current range:2mA-100A;

Display all the measuring parameters in one screen;

Current clamp has automatic conpensation function, 0.2%class accuracy;

Current clamp has automatic calibration function;

Integration design of the meter and clamp;

Automatically record and save 999 groups calibrate data;

16bit high accuracy AD switch 32 bits ARM processor core

Micro-multifunction optic sampler

Manual/automatic test inductive single phase meters;

Manual/automatic test electric single phase meters;

Measure virtual value of alternating voltage(15~300Vrms);

Measure virtual value of alternating current(50mA~100Arms);

Test parameters:active power,phase angle of voltage and current,frequency and etc.

Automat IC store testing data,and 999 group test results can be saved.
