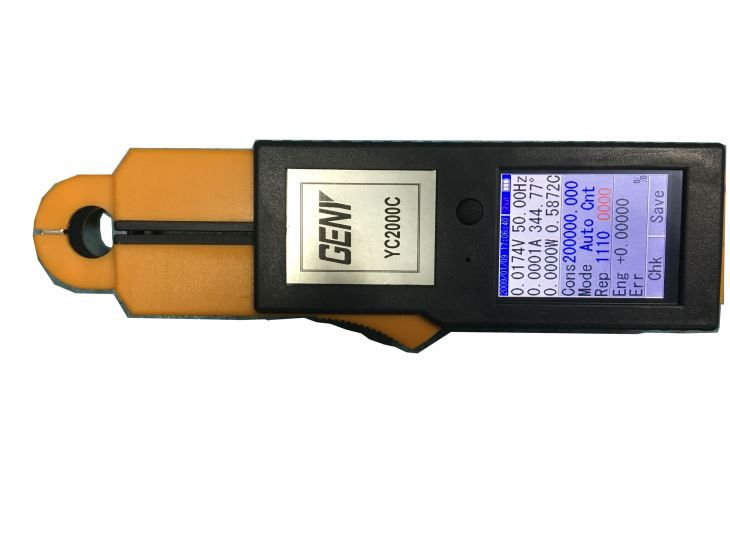

Single Phase Reference Standard Meter
Model: YC2000C
Main Characters
● Current clamp and meter combined together, colorful and touch-screen display;
● One AAA Li-battery can continuously working 24 hours;
● Wide voltage, current measurement range, voltage range: 15-300V, current range: 0.05-100A;
● Display all the measuring parameters in one screen;
● Current clamp has automatic conpensation function, 0.2% class accuracy;
● Current clamp has automatic calibration function;
● Integration design of the meter and clamp;
● 16bit high accuracy AD switch 32 bits ARM processor core.
● Automatically record and save 999 groups calibrate data;
● Micro-multifunction optic sampler
Application & Functions
● Manual/automatic test inductive single phase meters;
● Manual/automatic test electric single phase meters;
● Measure virtual value of alternating voltage (15~300Vrms);
● Measure virtual value of alternating current (50mA~100Arms);
● Test parameters: active power, phase angle of voltage and current, frequency and etc.
● Automat IC store testing data, and 999 group test results can be saved.
Specifications:
Conditions and requirement of use | Environment | Temperature | -10℃—+55℃ / 5%－85%RHD |
Relative humidity | -25℃－+70℃ /5%－95% RHD | ||
Altitude | <2500m | ||
Power | Voltage | 15~300V | |
Frequency range | 45Hz – 65Hz | ||
Waveform distortion | < 0.2% | ||
Measure Scope | Voltage: | 15—300V(r.m.s) | |
Current: | 5mA—100A(r.m.s) | ||
Phase angle: | 0—359.99º | ||
Frequency: | 45－65Hz | ||
Accuracy of measurement | Voltage & current: | better than 0.2% | |
Phase angle: | better than 0.05 º | ||
Frequency: | better than 0.005 Hz | ||
Active power: | better than 0.5% | ||
Active power energy: | better than 0.5% | ||

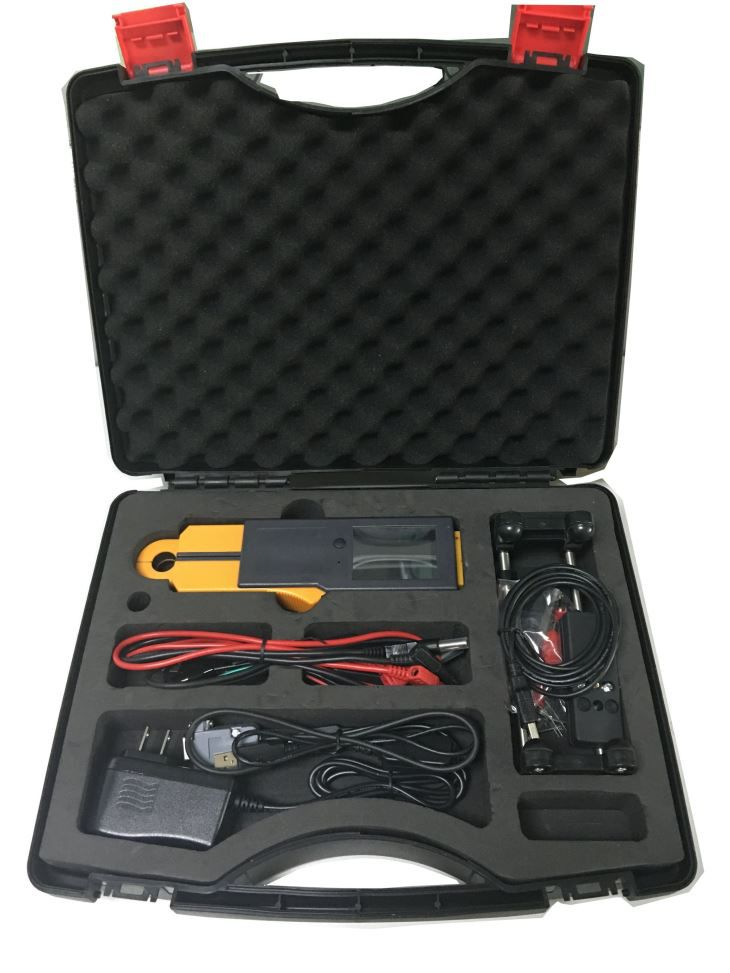

Dimension (L×W×H) | Main | Auxiliary | |
215 mm×60 mm×30 mm | 500 mm×120 mm×80 mm | ||
Weight | 0.25 kg | 3 kg | |
