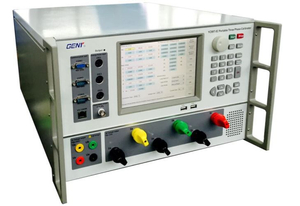

Three Phase Portable Meter Test Equipment
| Brand Name | GENY |
|---|---|
| Model Number | YC99T-3C |
| Certification | ISO 9001 |
| Place of Origin | China |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Supply Ability | 50 PCS per month |
| Delivery Time | 15 days after order confirmed |
| Packaging Details | Aluminum case with carton |
| AC Voltage Range | 57.7V-660V |
| Voltage Capa | 20VA MAx |
| Current Capacity | 50VA MAX |
| Accuracy | 0.05% |
| Distortion factor | < 0.3% for linear resistance load |
| Stability | 0.01%/180s |
YC99Y - 3C Three Phase Energy Meter Calibrator , 50va Max Current
Specifications:
Voltage | |
AC Voltage Range | 57.7V-660V |
Power of the Voltage output | MAX.20VA |
Resolution | 0.01% |
Accuracy | 0.1% |
Stability | 0.01%/180s |
Distortion factor | 0.2% |
Current | |
Test current output | 1A-50A (YC99T-3C) |
Power of the current output | Max. 50VA |
Resolution | 0.01% |
Accuracy | 0.05% |
Stability | 0.01%/180s |
Distortion factor | < 0.3% for linear resistance load |
Phase angle | |
Range | 0 -- 360° |
Resolution | 0.01° |
Accuracy | 0.2° |
Frequency | |
Range | 40Hz – 70Hz |
Resolution | 0.005Hz |
Pulse output | |
Harmonic Output | 2-63 |
Pulse input | |
Input channel | 3 |
Input frequency | Max. 20Hz |
Other | |
Voltage Supply | 220V±15% /110V±15% (optonal) |
Ambient temperature | 20°C -- 30°C |
Relative humidity | ≤85% |
Dimensions (W×H×D) (mm) | 500 X 440 X 180 |
Weight (kg) | 46 |
Description:
◇ The error of voltage, current, active power is ±0.05%, the error of reactive power is ±0.1%
◇ The stability of voltage, current, active power is 0.01%RG/3min, The distortion percentage of
◇ Alternative voltage and alternative current : ≤0.2%
◇ The voltage range of YC99T-3C from 57.7V-660V, current range:1A-50A
◇ Harmonic Output range:2-63, harmonic output is under measuring and analysis.
◇ Test data can be managed by computer via RS232 interface
◇ YC99T-3C not only can be operated by equipment but also can be controlled by PC

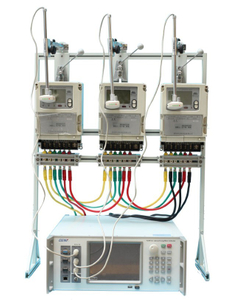

◇ Calibrate energy meters automatically, which including items, such as , preheating, starting,
◇ Creeping, error, influence, quantity test etc.
◇ MUTs can be accessed through RS485,RS232, Ethernet.
◇ Diagnostic function of functional fault and internal module communication.
Primary Competitive Advantages:
◇ High quality product
◇ Convenient operation
◇ strong and stable harmonic power source output
◇ Multiple-type of active and reactive energy meter test
Applications:
◇ Nation-level utility companies
◇ Governmental bureaus of metrology
◇ Big energy meter manufacturers
Established in 1987, GENY is well-known as one of the leading and professional manufacturers and suppliers of ac voltage range 57.7v-660v yc99y - 3c portable three phase electricity energy meter calibrator in max current 50a in China. Please rest assured to buy the quality equipment made in China from us and experience our good after-sale service.
