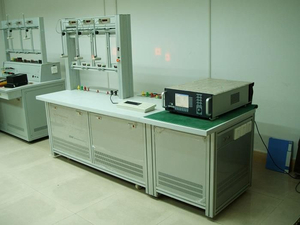

Three Phase Electricity Meter Test System
| Brand Name | GENY |
|---|---|
| Model Number | YC893D - F - 24 |
| Certification | ISO 9001 |
| Place of Origin | Guangzhou, China |
| Minimum Order Quantity | 1 set |
| Supply Ability | 40 sets per month |
| Delivery Time | 30 days |
| Packaging Details | Plywood case |
| Power | Electronic |
| Usage | testing of energy meter |
| Reference Standard Meter | SZ03A-K8 / RD-33 (Radian) |
| Accuracy class | 0.02 / 0.05 |
| Meter rack | aluminum material |
Specifications:
Technical spec. | |
Number of meter positions | 24 |
Accuracy | 0.05 / 0.02 |
Power Source | YCS-103-1200 |
Standard Meter | SZ03A-K6 / SZ03A-K8 / Radian RD-33 |
Scanning Head | YCG-S Series |
Voltage | |
Test voltage output(Phase-Neutral) | 3* (24V~288V)(or customized) |
Power of the voltage output | Max. 3x500VA |
Resolution | Better than 0.01% of full scale value of range |
Setting accuracy | Better than 0.05% at the final range value |
Stability | Better than 0.005% /h (integration time 150s) |
Load regulation from 0~max. load | Better than 0.01% |
Distortion factor | Better than 0.3% for linear resistance load |
Harmonic | 2nd~21st free programmable |
Current | |
Test current output | 3* (1mA - 100A) |
Power of the current output | Max. 3x750VA |
Resolution | Better than 0.01% of full scale value of range |
Setting accuracy | Better than 0.05% at the final range value |
Stability | Better than 0.005% /h (integration time 150s) |
Load regulation from 0~max. load | Better than 0.01% |
Distortion factor | Better than 0.3% for linear resistance load |
Harmonic | 2nd~21st free programmable |
Phase angle | |
Range | 0~360⁰ |
Resolution | 0.01⁰ |
Setting accuracy | 0.1⁰ |
Frequency | |
Range | 45Hz~65Hz |
Resolution | 0.01Hz |
Error display | |
Type of error display | Red LED |
Resolution of error displays | 8 digitals |
Other | |
Voltage supply | 3x220/380V±10%(or customized) 50/60Hz ±2Hz |
Ambient temperature | -10°C~+40°C |
Relative humidity | 35%~85% |
Applications:
◇ Nation-level utility companies
◇ Governmental bureaus of metrology
◇ Big energy meter manufacturers
Primary Competitive Advantages:
◇ High quality product
◇ Influence test of voltage, frequency, and harmonic
◇ Installing RS232, Ethernet communication port in each meter position.
◇ Tilt impact test (optional)
◇ Over 18 months long warranty
◇ High accuracy class: 0.05/0.02
◇ Can be customized of Three Phase Electric Energy Meter Test bench
◇ Extremely high power stability
◇ Neutral current test(optional)
◇ Timing error test
Description:
1) The meter test system can measure mechanical meter, electronic mechanical meters and electronic meter by ways of automatic, semi-automatic or manual operation.
2) Meters under testing: 3P4W, 3P3W, 1P2W.
3) Testing mode: active power, reactive power, cross connected reactive power.
4) Simultaneously measure meters with same specifications but different meter constants.
5) Automatic positioning rotor mark of disc of mechanical meter, with more efficiency.
6) Starting test and creeping test.
7) Neutral current test (optional).
8) Installing the ICT in each meter position to test three-phase meters with closed links between the current and voltage measuring circuits(I-P links)(optional).
9) With the protection function of overload, short voltage circuit and open current circuit.
10) The swing together of the scanning heads simplifies the control.
11) Aluminum alloy material, light and strong and corrosion resistant.
12) The testing software with friendly Windows 2000 /XP /7 /8 /10 operation system, includes functional module of all kinds of modern energy meter needed, to reality error test, harmonic test,demand test, influence test etc,.
Established in 1987, GENY is well-known as one of the leading and professional manufacturers and suppliers of full-automatic multi-function three phase electric energy meter testing equipment within high-grade accuracy class 0.02 for test or calibration of both single-phase and three-phase muts in China. Please rest assured to buy the quality equipment made in China from us and experience our good after-sale service.
