Single Phase Portable Test System Model : YC92B This is portable single phase calibrator is used to calibrate single-phase energy meter, and also it can be used as power source. Feature - custom voltage, current range , set the output frequency - verfication process can be adopted by the...
Product description

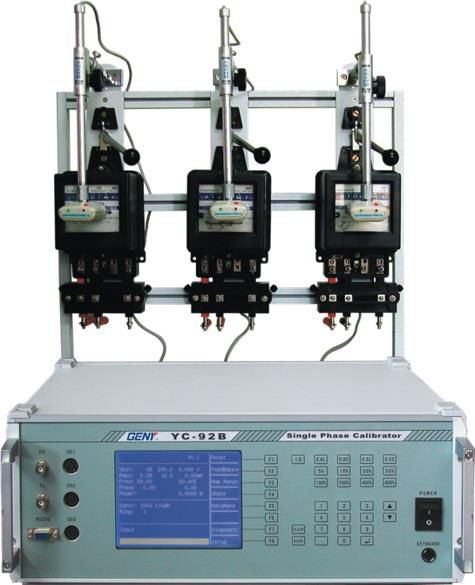

Single Phase Portable Test System



Model : YC92B



This is portable single phase calibrator is used to calibrate single-phase energy meter, and also it can be used as power source.



Feature



- custom voltage, current range , set the output frequency

- verfication process can be adopted by  the keyboard or computer operations

- An external standard PC keyboard can be operated

- Storage 1000 group test results and can be retrieved and display in the local

- RS232 interface, can be used with computer system

- voltage short/ current open/ overload protection



Main Technical Data



- Meter position: 1...3

- Accuracy:  0.1

- Voltage output:  0V ... 300V AC

- Current output:  0 ... 120A

- Phase angle output: 0o ... 360o

-  Frequency output: 40Hz ... 70Hz





Established in 1987, GENY is well-known as one of the leading and professional manufacturers and suppliers of meter calibration portable equipment in China. Please rest assured to buy the quality equipment made in China from us and experience our good after-sale service.
